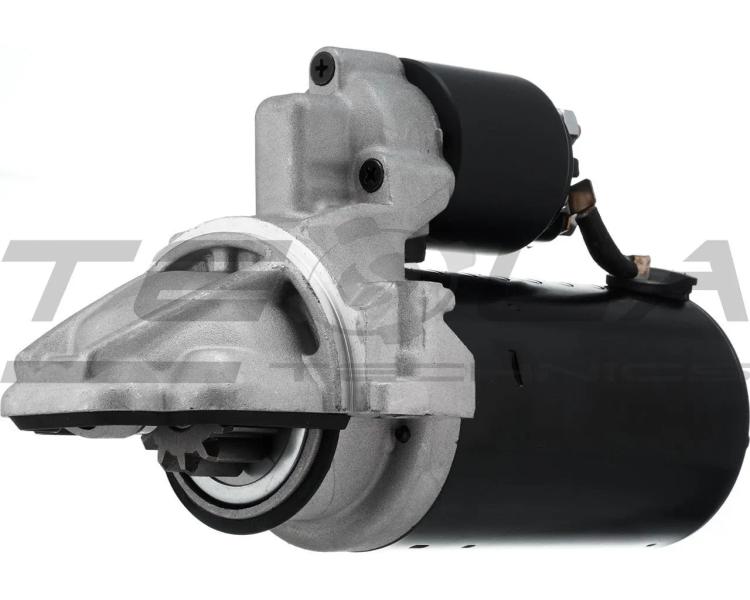

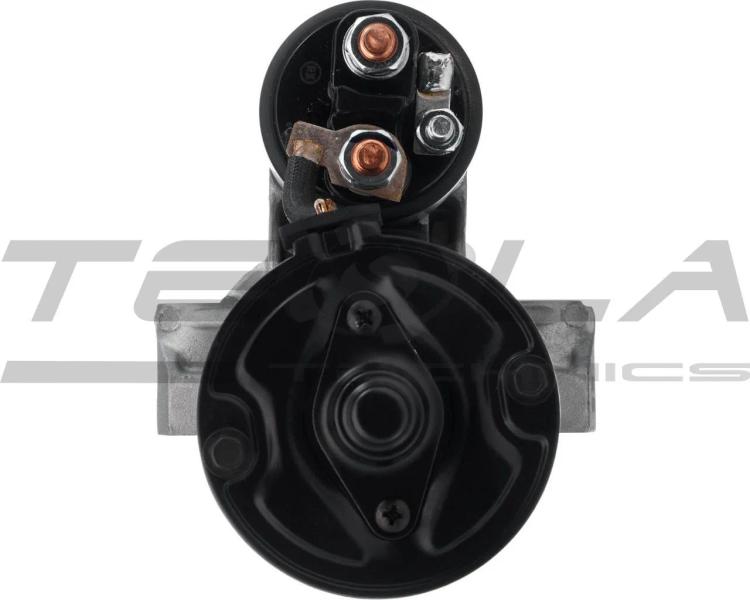

Стартер TT16320
Нет в наличии
АртикулTT16320
Напряжение12 V
Мощность2 KW
Размер A89 mm
Размер B36 mm
Количество зубьев12
Диаметр зубчатки38.6 mm
Длина254 mm
Направление вращенияCR
Клемма 50M6
ИсполнениеBOSCH
Тип транспортного средстваAutomotive
Тип транспортного средстваVan
EAN138436250012210
Ширина упаковки0.179 m
Высота упаковки0.15 m
Глубина упаковки0.298 m
Масса4.587 kg
Справочная информация
12V, 2.0kW; 12 Tooth; CW; Citroen, Fiat, Ford, Peugeot Boxer, Van 2.2L, 2.4L Diesel;
Кросс-номера и комплектующие
TT16320 PRO
TT
0001109205
BOSCH
Комплектующие0001109304
BOSCH
Комплектующие0001109305
BOSCH
Комплектующие0001109324
BOSCH
Комплектующие0001109325
BOSCH
Комплектующие0001109328
BOSCH
Комплектующие0001109329
BOSCH
Комплектующие0001109387
BOSCH
Комплектующие0001109388
BOSCH
КомплектующиеПрименение
Citroen
JUMPER / RELAY 100 2006-04 - 2.2 Diesel (4HV (P22DTE)) 74kW /101HP
JUMPER / RELAY 100 2006-04 - 2012-12 2.2 Diesel (4HV (P22DTE)) 74kW /101HP
JUMPER / RELAY 110 2011-07 - 2.2 Diesel (4HG (P22DTE)) 81kW /110HP
JUMPER / RELAY 120 2006-04 - 2.2 Diesel (4HU (P22DTE)) 88kW /120HP
JUMPER / RELAY 130 2011-07 - 2.2 Diesel (4HH (P22DTE)) 96kW /130HP
JUMPER / RELAY 150 2011-07 - 2.2 Diesel (4HJ (P22DTE)) 110kW /150HP
FIAT
DUCATO (250_) 2006-07 - 2.2 Diesel (4HV) 74kW /100HP
DUCATO (250_) 2006-07 - 2011-05 2.2 Diesel (4HV) 74kW /100HP
Ford
Tourneo Custom V362 (F3) 2012-04 - 2015-12 2.2 Diesel (CVFF) 114kW /155HP
Tourneo Custom V362 (F3) 2012-04 - 2015-12 2.2 Diesel (CYF4, CYFF) 92kW /125HP
Tourneo Custom V362 (F3) 2012-04 - 2015-12 2.2 Diesel (DRF4, DRFF, DRFG) 74kW /100HP
Transit (FA_ _) 2006-04 - 2014-08 2.2 Diesel (P8FA, P8FB) 63kW /85HP
Transit (FA_ _) 2006-04 - 2014-08 2.2 Diesel (QVFA) 81kW /110HP
Transit (FA_ _) 2006-04 - 2014-08 2.2 Diesel (QWFA) 96kW /130HP
Transit (FA_ _) 2006-04 - 2014-08 2.4 Diesel (H9FB, H9FD) 103kW /140HP
Transit (FA_ _) 2006-04 - 2014-08 2.4 Diesel (JXFA, JXFC) 85kW /115HP
Transit (FA_ _) 2006-04 - 2014-08 2.4 Diesel (PHFA, PHFC) 74kW /100HP
Transit (FA_ _) 2006-11 - 2014-08 2.4 Diesel (H9FB) 103kW /140HP
Transit (FA_ _) 2007-09 - 2014-08 3.2 Diesel (SAFA, SAFB) 147kW /200HP
Transit (FA_ _) 2007-10 - 2014-08 2.2 Diesel (PGFA, PGFB, UHFA, UHFB, UHFC) 103kW /140HP
Transit (FA_ _) 2008-10 - 2014-08 2.2 Diesel (SRFA, SRFB, SRFC, SRFD, SRFE) 85kW /115HP
Transit (FA_ _) 2011-09 - 2014-12 2.2 Diesel (CYRA) 92kW /125HP
Transit (FA_ _) 2011-10 - 2014-08 2.2 Diesel (CVRA, CVRB, CVRC) 114kW /155HP
Transit (FA_ _) 2011-10 - 2014-08 2.2 Diesel (CYFA, CYFB, CYFC, CYFD) 92kW /125HP
Transit (FA_ _) 2011-10 - 2014-08 2.2 Diesel (DRFA, DRFB, DRFC, DRFD, DRFE) 74kW /100HP
Transit (FA_ _) 2011-10 - 2014-08 2.2 Diesel (USRA, USRB) 100kW /136HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2006-04 - 2014-08 2.2 Diesel (P8FA, P8FB) 63kW /85HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2006-04 - 2014-08 2.2 Diesel (QVFA) 81kW /110HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2006-04 - 2014-08 2.2 Diesel (QWFA) 96kW /130HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2006-04 - 2014-08 2.4 Diesel (H9FD) 103kW /140HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2006-04 - 2014-08 2.4 Diesel (JXFA, JXFC) 85kW /115HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2006-04 - 2014-08 2.4 Diesel (PHFA, PHFC) 74kW /100HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2006-11 - 2014-08 2.4 Diesel (H9FB) 103kW /140HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2007-10 - 2014-08 2.2 Diesel (PGFA, PGFB, UHFA, UHFB, UHFC) 103kW /140HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2008-02 - 2014-08 3.2 Diesel (SAFA, SAFB) 147kW /200HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2008-10 - 2014-08 2.2 Diesel (SRFA, SRFB, SRFC, SRFD, SRFE) 85kW /115HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2011-09 - 2014-08 2.2 Diesel (USRA, USRB) 100kW /135HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2011-10 - 2014-08 2.2 Diesel (CYFA, CYFB, CYFC, CYFD) 92kW /125HP
Transit (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2011-10 - 2014-08 2.2 Diesel (DRFA, DRFB, DRFC, DRFD, DRFE) 74kW /100HP
Transit (FM_ _, FN_ _, FF_ _) 2006-04 - 2014-08 2.2 Diesel (P8FA, P8FB) 63kW /85HP
Transit (FM_ _, FN_ _, FF_ _) 2006-04 - 2014-08 2.2 Diesel (QVFA) 81kW /110HP
Transit (FM_ _, FN_ _, FF_ _) 2006-04 - 2014-08 2.2 Diesel (QWFA) 96kW /130HP
Transit (FM_ _, FN_ _, FF_ _) 2006-04 - 2014-08 2.4 Diesel (H9FB, H9FD) 103kW /140HP
Transit (FM_ _, FN_ _, FF_ _) 2006-04 - 2014-08 2.4 Diesel (JXFA, JXFC) 85kW /115HP
Transit (FM_ _, FN_ _, FF_ _) 2006-04 - 2014-08 2.4 Diesel (PHFA, PHFC) 74kW /100HP
Transit (FM_ _, FN_ _, FF_ _) 2006-11 - 2014-08 2.4 Diesel (H9FB) 103kW /140HP
Transit (FM_ _, FN_ _, FF_ _) 2007-09 - 2014-08 3.2 Diesel (SAFA, SAFB) 147kW /200HP
Transit (FM_ _, FN_ _, FF_ _) 2007-10 - 2011-09 2.2 Diesel (PGFA, PGFB, UHFA, UHFB, UHFC) 103kW /140HP
Transit (FM_ _, FN_ _, FF_ _) 2008-10 - 2014-08 2.2 Diesel (SRFA, SRFB, SRFC, SRFD, SRFE) 85kW /115HP
Transit (FM_ _, FN_ _, FF_ _) 2011-10 - 2014-08 2.2 Diesel (CVRA, CVRB, CVRC) 114kW /155HP
Transit (FM_ _, FN_ _, FF_ _) 2011-10 - 2014-08 2.2 Diesel (CYFA, CYFB, CYFC, CYFD) 92kW /125HP
Transit (FM_ _, FN_ _, FF_ _) 2011-10 - 2014-08 2.2 Diesel (DRFA, DRFB, DRFC, DRFD, DRFE) 74kW /100HP
Transit TOURNEO 2006-07 - 2014-08 2.2 Diesel (QVFA) 81kW /110HP
Transit TOURNEO 2006-07 - 2014-08 2.2 Diesel (QWFA) 96kW /131HP
Transit TOURNEO 2007-10 - 2014-08 2.2 Diesel (PGFA, PGFB, UHFA, UHFB, UHFC) 103kW /140HP
Transit TOURNEO 2008-10 - 2014-08 2.2 Diesel (SRFA, SRFB, SRFC, SRFD, SRFE) 85kW /115HP
Transit TOURNEO 2011-10 - 2014-08 2.2 Diesel (CYFA, CYFB, CYFC, CYFD) 92kW /125HP
Transit V363 (FAD, FBD) 2013-08 - 2018-12 2.2 Diesel (CY14, CYF5, CYFG, USF6) 92kW /125HP
Transit V363 (FAD, FBD) 2013-08 - 2018-12 2.2 Diesel (DRF5, DRFF, DRFG) 74kW /100HP
Transit V363 (FAD, FBD) 2014-12 - 2018-12 2.2 Diesel (CVF5) 114kW /155HP
Transit V363 (FCD, FDD) 2013-08 - 2018-12 2.2 Diesel (CV24, CVR5, UYR6) 114kW /155HP
Transit V363 (FCD, FDD) 2013-08 - 2018-12 2.2 Diesel (CVF5) 114kW /155HP
Transit V363 (FCD, FDD) 2013-08 - 2018-12 2.2 Diesel (CY14, CYF5, CYFG, USF6) 92kW /125HP
Transit V363 (FCD, FDD) 2013-08 - 2018-12 2.2 Diesel (CY24, CYR5) 92kW /125HP
Transit V363 (FCD, FDD) 2013-08 - 2018-12 2.2 Diesel (CYR5, USR6) 92kW /125HP
Transit V363 (FCD, FDD) 2013-08 - 2018-12 2.2 Diesel (DRF5, DRFF, DRFG) 74kW /100HP
Transit V363 (FCD, FDD) 2013-08 - 2018-12 2.2 Diesel (DRR5) 74kW /100HP
Transit V363 (FCD, FDD) 2015-08 - 2018-12 2.2 Diesel (CV24, CVR5) 114kW /155HP
Transit V363 (FED, FFD) 2013-08 - 2018-12 2.2 Diesel (CV24, CVR5, UYR6) 114kW /155HP
Transit V363 (FED, FFD) 2013-08 - 2018-12 2.2 Diesel (CVF5) 114kW /155HP
Transit V363 (FED, FFD) 2013-08 - 2018-12 2.2 Diesel (CY14, CYF5, CYFG, USF6) 92kW /125HP
Transit V363 (FED, FFD) 2013-08 - 2018-12 2.2 Diesel (CYR5, USR6) 92kW /125HP
Transit V363 (FED, FFD) 2013-08 - 2018-12 2.2 Diesel (DRF5, DRFF, DRFG) 74kW /100HP
Transit V363 (FED, FFD) 2013-08 - 2018-12 2.2 Diesel (DRR5) 74kW /100HP
Transit Custom V362 (F3) 2012-04 - 2015-12 2.2 Diesel (CVFF) 114kW /155HP
Transit Custom V362 (F3) 2012-04 - 2015-12 2.2 Diesel (CYF4, CYFF) 92kW /125HP
Transit Custom V362 (F3) 2012-04 - 2015-12 2.2 Diesel (DRF4, DRFF, DRFG) 74kW /100HP
Transit Custom V362 (FY, FZ) 2012-09 - 2.2 Diesel (CVFF) 114kW /155HP
Transit Custom V362 (FY, FZ) 2012-09 - 2.2 Diesel (DRF4, DRFF, DRFG) 74kW /100HP
Transit Custom V362 (FY, FZ) 2012-09 - 2016-04 2.2 Diesel (CYF4, CYFF) 92kW /125HP
Land Rover
Defender (L316) 2006-10 - 2016-02 2.4 Diesel (DT244) 90kW /122HP
Defender (L316) 2007-05 - 2016-02 2.4 Diesel (DT244) 90kW /122HP
Defender (L316) 2007-07 - 2016-02 2.4 Diesel (DT244) 103kW /140HP
Defender (L316) 2011-08 - 2016-02 2.2 Diesel (DT224) 90kW /122HP
Defender (L316) 2015-02 - 2016-02 2.2 Diesel (DT224) 110kW /150HP
Peugeot
BOXER / MANAGER 2006-04 - 2.2 Diesel (4HU (P22DTE)) 88kW /120HP
BOXER / MANAGER 2006-04 - 2.2 Diesel (4HV (P22DTE)) 74kW /101HP
BOXER / MANAGER 2011-03 - 2.2 Diesel (4HG (P22DTE)) 81kW /110HP
BOXER / MANAGER 2011-03 - 2.2 Diesel (4HH (P22DTE)) 96kW /131HP
BOXER / MANAGER 2011-03 - 2.2 Diesel (4HJ (P22DTE)) 110kW /150HP
